X-toaster KIT – Standard

99.90

This is the most convenient X-toaster package: the kit contains everything you need for a fast and easy toaster oven reflow conversion.
Controller, SSR, Heatsink, Thermocouple and connectors.

Out of stock

SKU: XTKIT-STD Categories: ,

Description

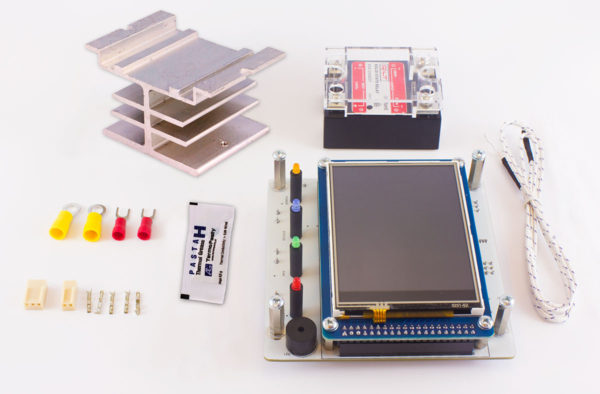

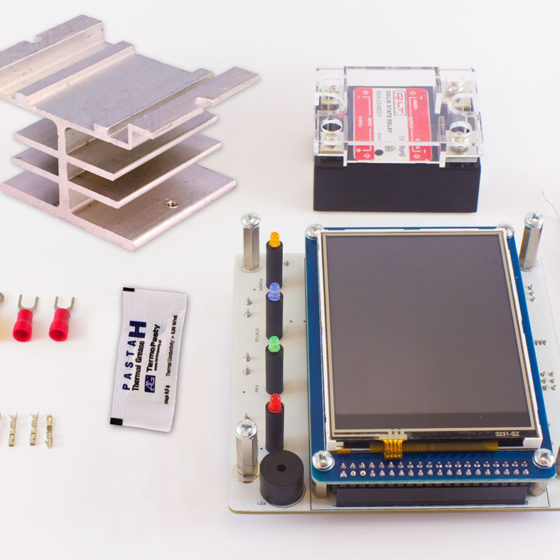

This is the standard X-toaster package KIT: the kit contains everything you need for a fast and easy toaster oven reflow conversion:

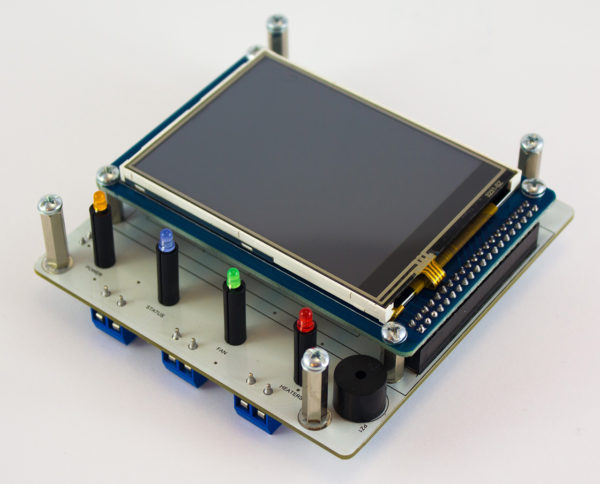

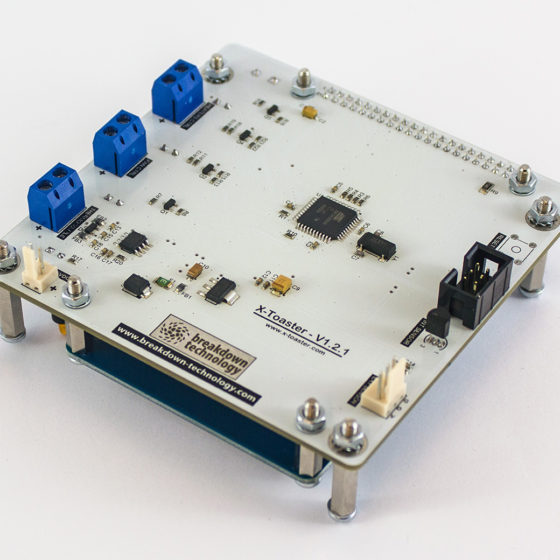

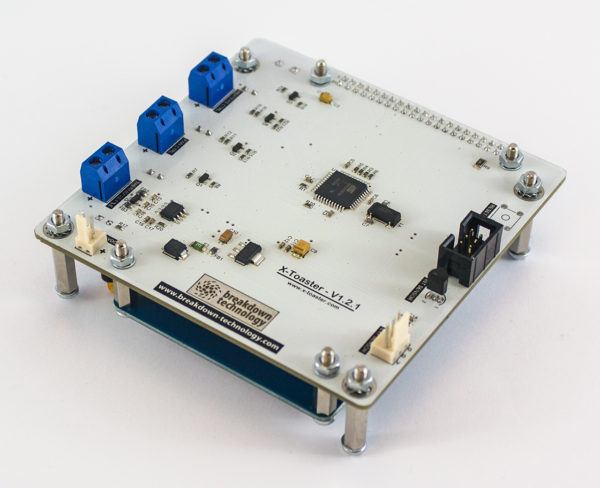

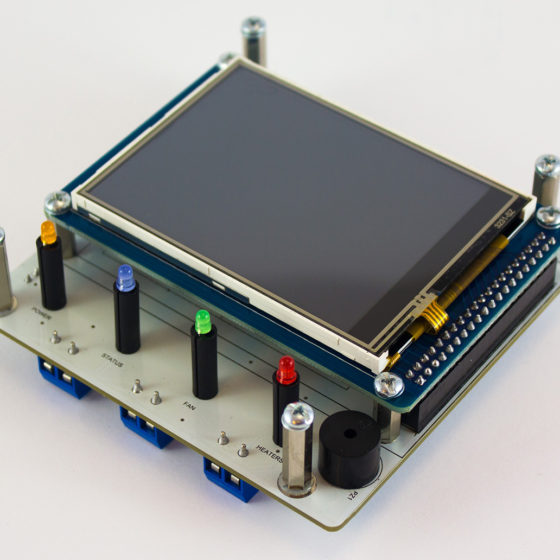

X-toaster Board assembled and tested

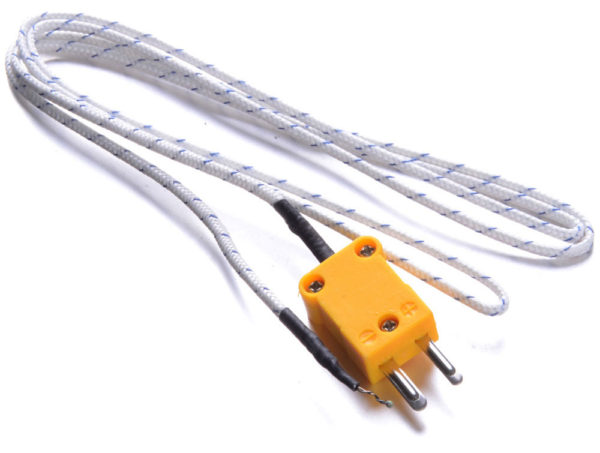

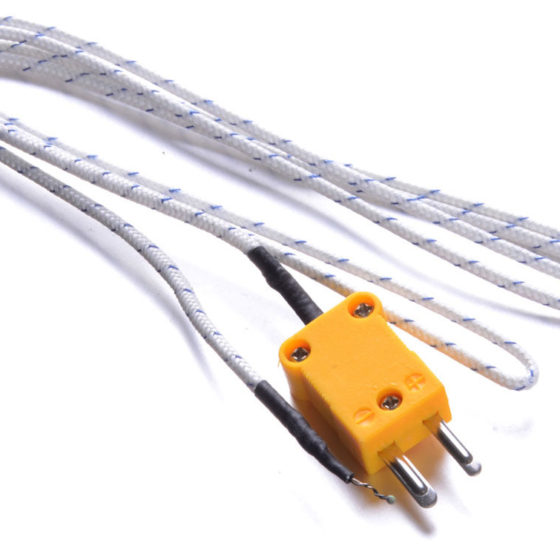

K-type thermocouple with fiberglass sleeve rated for 250°C
(https://www.x-toaster.com/product/k-type-thermocouple-fiberglass/)

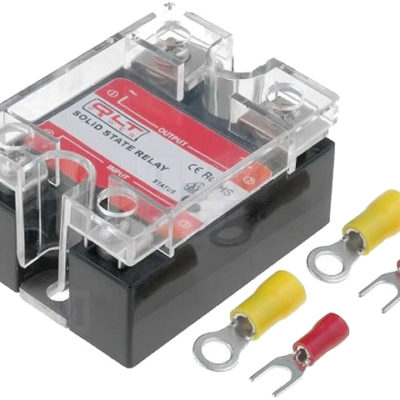

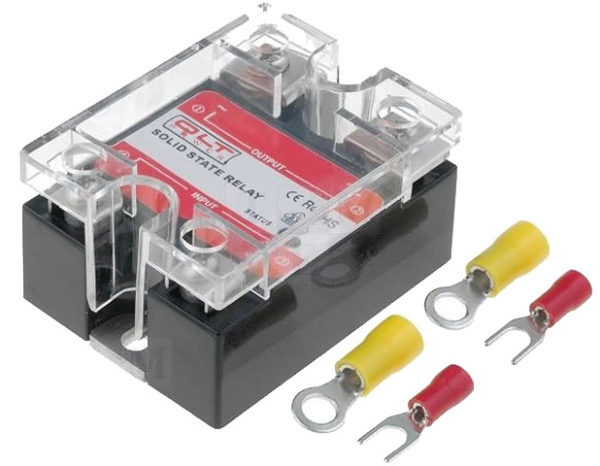

QLT Power SSR rated for mains until 280V@25A
(https://www.x-toaster.com/product/ssr-2528zd3/)

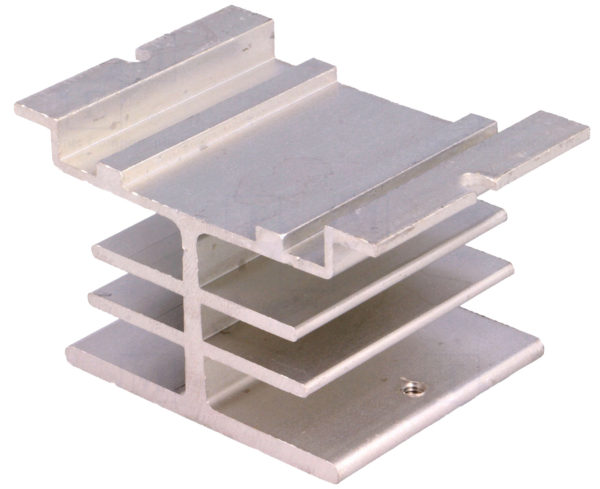

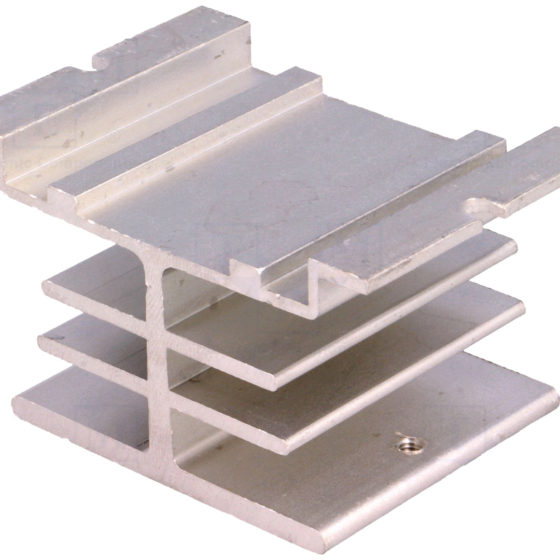

Standard Heatsink for the SSR
(https://www.x-toaster.com/product/heatsink-for-solid-state-relay-ssrhs-1p80/)

Heatsink compound
(https://www.x-toaster.com/product/heat-conductive-compound/)

Power and external sensor Connectors



Please note that the accessories included in this kit are ment for a very light use and only with leaded profiles.

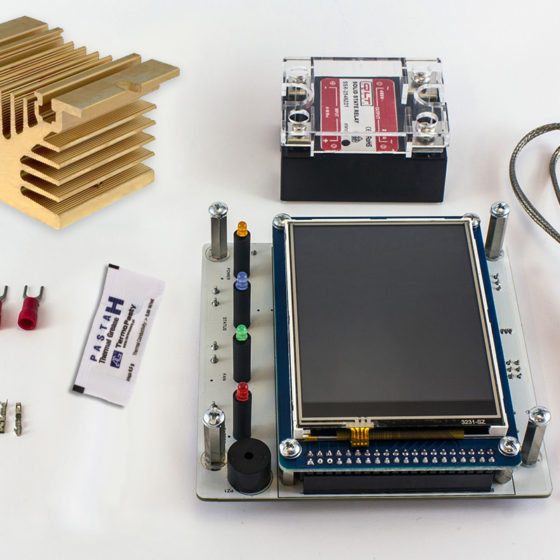

For a more robust assembly or if you need to use leadfree paste consider buying the deluxe x-toaster reflow oven conversion kit instead.

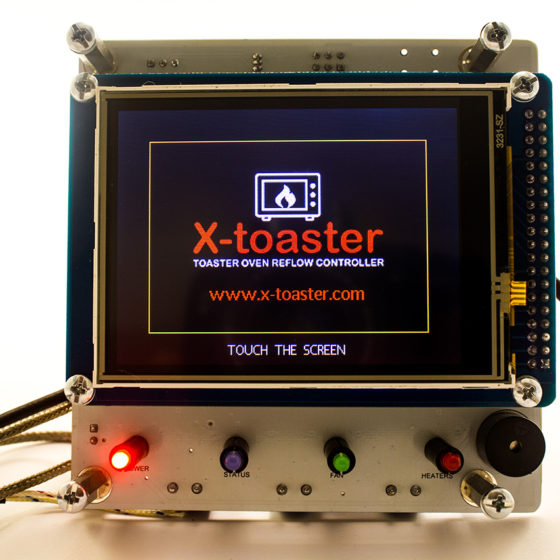

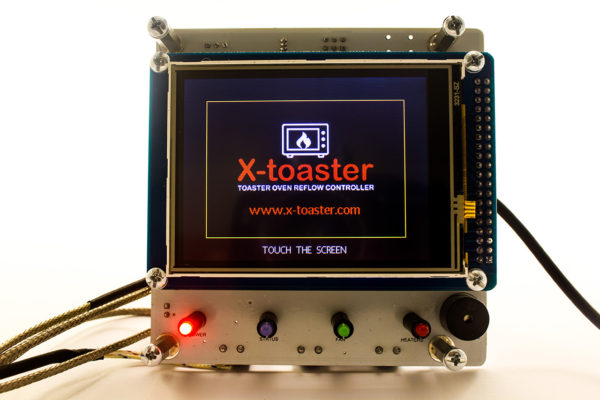

For an overview of the X-toaster Reflow Controller you can check the page “What is X-toaster?“.

Have a look at the User Interface.

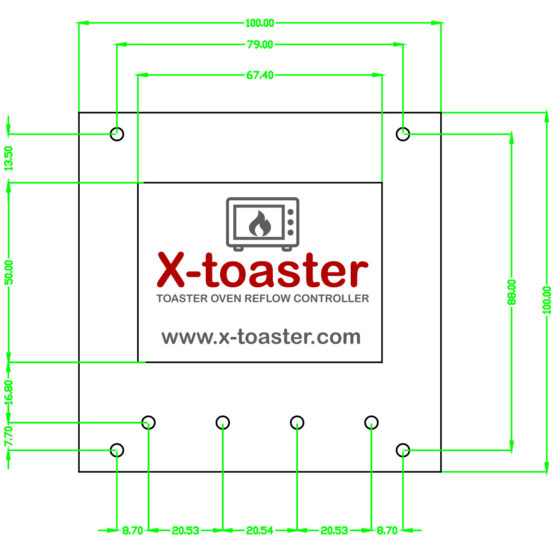

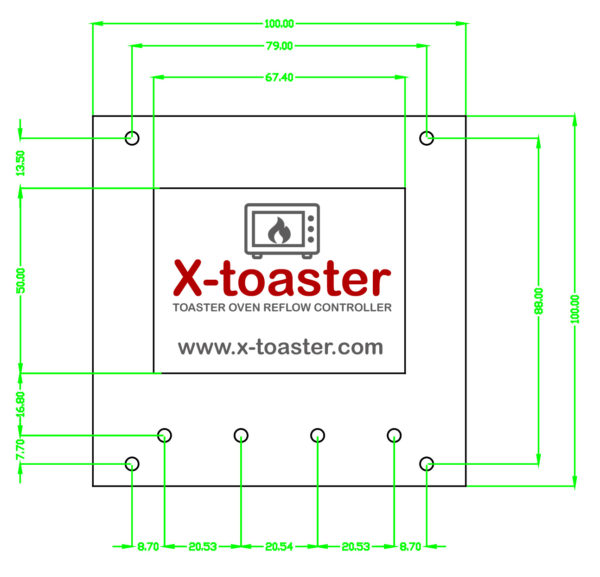

Check out how easy is to mount X-toaster on a front panel.



Shipping is via UPS/DHL trackable, it normally takes 48/72h to reach North America and 24/72h for European countries. Max 5/7 days for the rest of the world.
Insurance is optional, you can select it in the cart page.

If you can’t find shipping cost to your country please contact us, we will add the option in max 24h.



Payment will be done in EUR, any currency conversion in this page is for reference only.
Prices are shown ex VAT, EU sales are subject to VAT (22%) which will be applied to your order at checkout.

If you are an EU business customer with a valid VAT number, you will have the opportunity to insert it during checkout to get VAT exemption.



We are currently shipping hardware revision 1.2.2 and firmware version 1.4.1



RESOURCES:

X-toaster-reflow-oven-controller-User-Manual
PDF files compressed with RAR.
X-TOASTER USER MANUAL

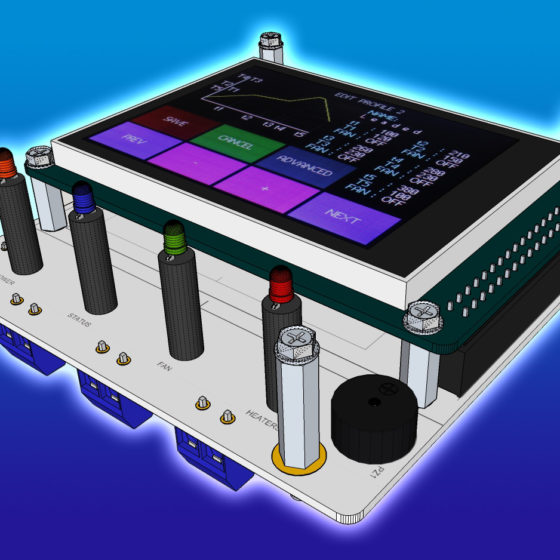

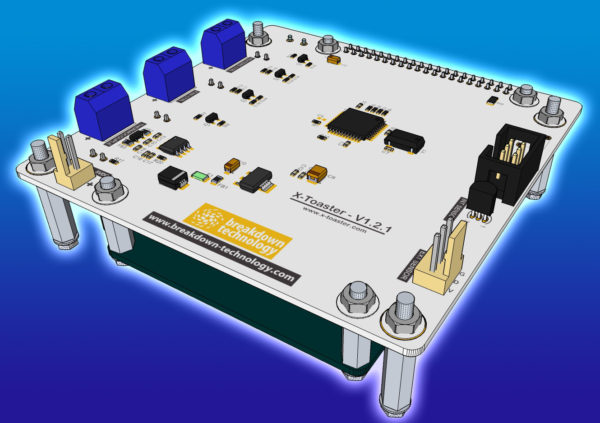

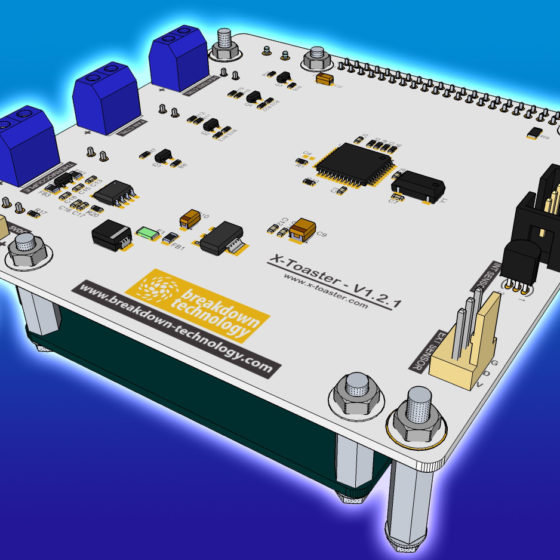

Reflow-Oven-Controller-Sketchup-Model-Download
Quickly design the project
of your own chassis.
X-TOASTER SKETCHUP MODEL







Additional information

Weight 1 kg
Dimensions 21 x 11.5 x 6 cm
