X-toaster KIT – Deluxe

119.90

This is the professional / High Power X-toaster package: the kit contains everything you need for a fast and easy toaster oven reflow conversion.
Controller, SSR, Heatsink, Thermocouple, Power Supply, Stylus, Front Panel Sample  and Connectors.

Out of stock

SKU: XTKIT-DLX Categories: ,

Description

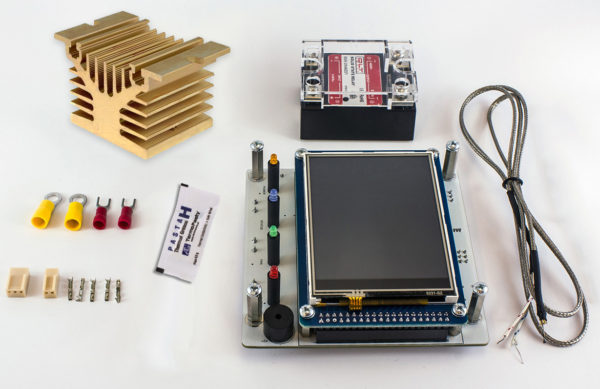

This is the deluxe X-toaster package KIT: the kit contains everything you need for a fast and easy toaster oven reflow conversion.
The deluxe Kit is shipped with the high power heatsink and with the metal shielded thermocouple.
It is more adequate for frequent lead free reflow sessions and for day by day professional and semi-professional use.

X-toaster Board assembled and tested

K-type thermocouple with metal sleeve rated for 500°C
(https://www.x-toaster.com/product/k-type-thermocouple-shielded/)

QLT Power SSR rated for mains until 280V@25A
(https://www.x-toaster.com/product/ssr-2528zd3/)

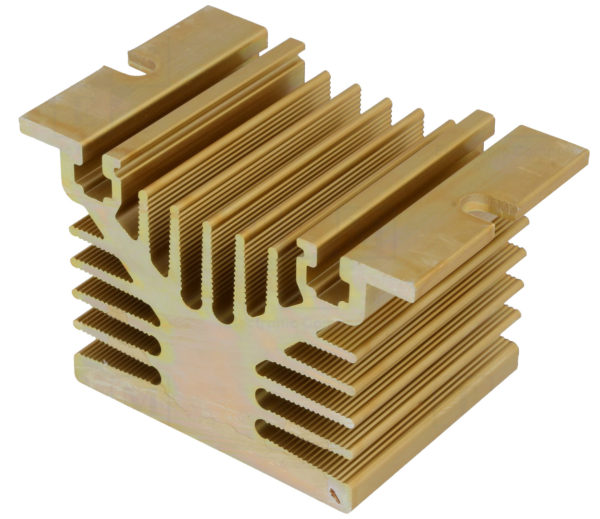

High Power Heatsink for the SSR
(https://www.x-toaster.com/product/heatsink-for-ssr-hs-060-50/)

HIGH POWER HEATSINKS ARE TEMPORARELY OUT OF STOCK. DELUXE KITS WILL BE SHIPPED WITH THE MEDIUM POWER HEATSINK.

Heatsink compound
(https://www.x-toaster.com/product/heat-conductive-compound/)

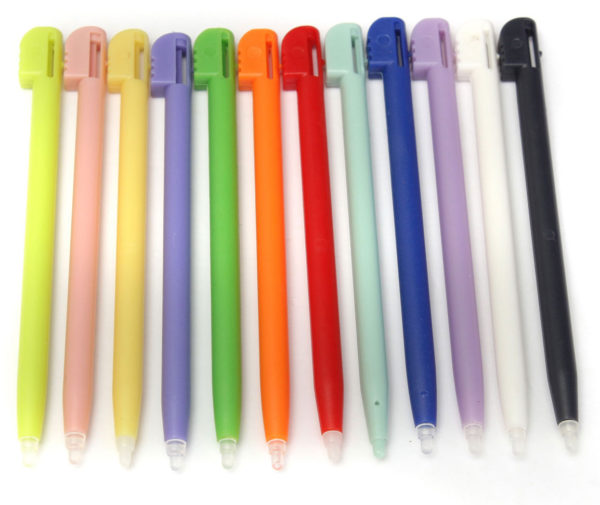

Touch Screen Stylus

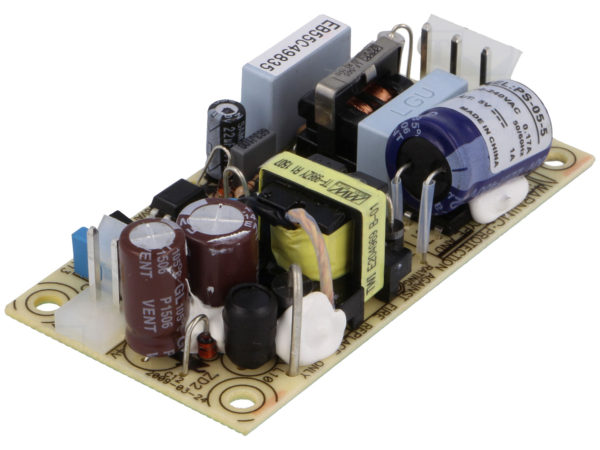

5V/1A frameless switching Power Supply
(https://www.x-toaster.com/product/power-supply-5vdc1a-frameless/)

Laser cut front panel sample
Usefull as a reference for cutting the openings in your own chassis.

Power and external sensor Connectors
Including connectors for the 5V/1A power supply, external sensor and onboard power.



For an overview of the X-toaster Reflow Controller you can check the page “What is X-toaster?“.

Have a look at the User Interface.

Check out how easy is to mount X-toaster on a front panel.



Shipping is via UPS/DHL trackable, it normally takes 48/72h to reach North America and 24/72h for European countries. Max 5/7 days for the rest of the world.
Insurance is optional, you can select it in the cart page.

If you can’t find shipping cost to your country please contact us, we will add the option in max 24h.



Payment will be done in EUR, any currency conversion in this page is for reference only.
Prices are shown ex VAT, EU sales are subject to VAT (22%) which will be applied to your order at checkout.

If you are an EU business customer with a valid VAT number, you will have the opportunity to insert it during checkout to get VAT exemption.



We are currently shipping hardware revision 1.2.2 and firmware version 1.4.1



RESOURCES:

X-toaster-reflow-oven-controller-User-Manual
PDF files compressed with RAR.
X-TOASTER USER MANUAL
Reflow-Oven-Controller-Sketchup-Model-Download
Quickly design the project
of your own chassis.
X-TOASTER SKETCHUP MODEL







Additional information

Weight 1 kg
Dimensions 21 x 11.5 x 6 cm
